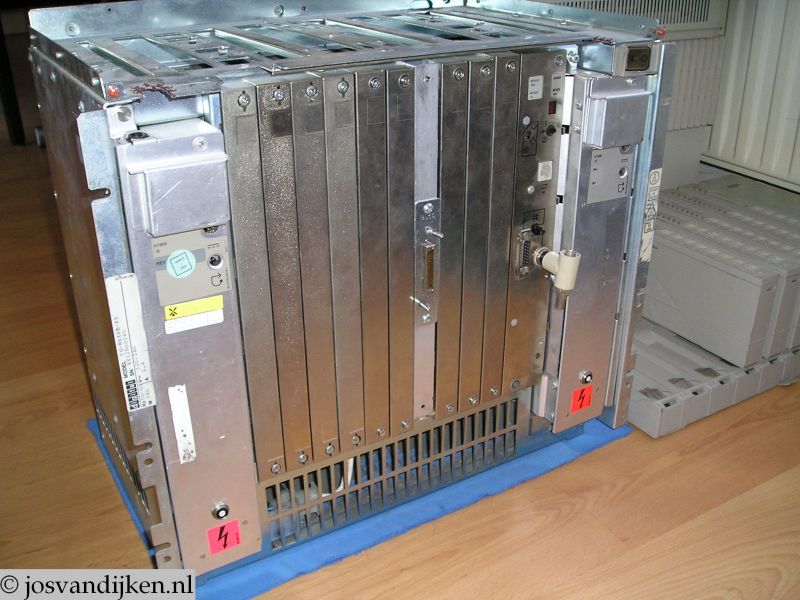

DIGITAL MicroVAX


Dit apparaat is niet meer in mijn bezit.

Specificaties:

  • Processor: KA640-A V5.3, VMB 2.7
  • Geheugen: 12 MB
KA640-A V5.3, VMB 2.7
Performing normal system tests.
41..40..39..38..37..36..35..34..33..32..31..30..29..28..27..26..
25..24..23..22..21..20..19..18..17..16..15..14..13..12..11..10..
09..08..07..06..05..04..03..
Tests completed.
Loading system software.
No default boot device has been specified.

Available devices.
-ESA0 (08-00-2B-0F-EB-21)

Device? [ESA0]:
>>>SHOW VERSION
KA640-A V5.3, VMB 2.7

>>>SHOW MEMORY
Memory 0: 00000000 to 003FFFFF, 4MB, 0 bad pages
Memory 1: 00400000 to 00BFFFFF, 8MB, 0 bad pages

Total of 12MB, 0 bad pages, 102 reserved pages

>>>SHOW QBUS
Scan of Qbus I/O Space
-20001F40 (777500) = 0020 (004) IPCR

Scan of Qbus Memory Space

>>>SHOW DEVICE
DSSI Node 7 (*)

Ethernet Adapter
-ESA0 (08-00-2B-0F-EB-21)
>>>HELP
Following is a brief summary of all the commands supported by the console:

UPPERCASE denotes a keyword that you must type in
| denotes an OR condition
[] denotes optional parameters
<> denotes a field that must be filled in
with a syntactically correct value

Valid qualifiers:
/B /W /L /Q /INSTRUCTION
/G /I /V /P /M
/STEP: /N: /NOT
/WRONG /U

Valid commands:
DEPOSIT [
<qualifiers>] <address> [<datum> [<datum>]]
EXAMINE [<qualifiers>] [<address>]
MOVE [<qualifiers>] <address> <address>
SEARCH [<qualifiers>] <address> <pattern> [<mask>]
SET BFLG <boot_flags>
SET BOOT <boot_device>[:]
SET HOST/DUP/DSSI <node_number> [<task>]
SET HOST/DUP/UQSSP </DISK | /TAPE> <controller_number> [<task>]
SET HOST/DUP/UQSSP <physical_CSR_address> [<task>]
SET HOST/MAINTENANCE/UQSSP/SERVICE <controller_number>
SET HOST/MAINTENANCE/UQSSP <physical_CSR_address>
SET LANGUAGE <language_number>
SHOW BFLG
SHOW BOOT
SHOW DEVICE
SHOW DSSI
SHOW ETHERNET
SHOW LANGUAGE
SHOW MEMORY [/FULL]
SHOW QBUS
SHOW RLV12
SHOW UQSSP
SHOW VERSION
HALT
INITIALIZE
UNJAM
CONTINUE
START <address>
REPEAT <command>
X <address> <count>
FIND [/MEMORY | /RPB]
TEST [<test_code> [<parameters>]]
BOOT [/R5:<boot_flags> | /<boot_flags>] [<boot_device>[:]]
NEXT [count]
CONFIGURE
HELP
>>>TEST 9E

Test
# Address Name Parameters
___________________________________________________________________________
2004CC00 De_SCB
C6 2004E2F0 SSC_powerup *********
C7 2004E3B2 CBTCR timeout ***
34 2004E46C ROM logic test *
33 2004E534 CMCTL_powerup *
32 2004E57C CMCTL regs MEMCSR0_addr *********
91 2004E6A0 CQBIC_powerup **
90 2004E730 CQBIC regs *
80 2004E7B2 CQBIC_memory **********
60 2004EDD9 Console serial start_baud end_baud ******
62 2004F128 console QDSS mark_not_present selftest_r0 selftest_r1 *****
63 2004F2A8 QDSS self-test input_csr selftest_r0 selftest_r1 ******
51 2004F40E CFPA *****
52 2004F5FA Prog timer which_timer wait_time_us ***
53 2004F8C0 TOY clock repeat_test_250ms_ea Tolerance ***
55 2004FA6B Interval timer *
5A 2004FAE0 VAX CMCTL CDAL dont_report_memory_bad repeat_count *
45 2004FBF0 cache_mem_cqbic start_addr end_addr addr_incr ****
46 2004FED8 Cache1_diag_md addr_incr *********
9E 20050502 List diags *
81 20050528 MSCP-QBUS test IP_csr ******
82 200506EA DELQA device_num_addr ****
C1 200508C5 SSC RAM *
C2 20050A8C SSC RAM ALL *
C5 20050BF8 SSC regs *
56 20050CF4 SII_ext_loopbck ***
5C 20050FF9 SII_initiatior ******
5D 20051CBE SII target *******
58 20053456 DSSI reset port_no time_secs *
57 2005383C SII_memory incr test_pattern *****
5B 20053BE7 SII_registers ****
5E 20053D7C NI_memory incr data_pattern ***
5F 20053ECC NI_Test do_extl where *******
54 20054A3F Virtual mode ******
41 20054DD8 Board Reset ***
42 20054F89 Check_for_intrs ***
31 20054FCC MEM_Setup_CSRs **********
30 200554FB MEM_Bitmap *** mark_Hard_SBEs ******
4F 20055936 MEM_Data start_add end_add add_incr cont_on_err ******
4E 20055AF4 MEM_Byte start_add end_add add_incr cont_on_err ******
4D 20055C09 MEM_Address start_add end_add add_incr cont_on_err ******
4C 20055D9B MEM_ECC_Error start_add end_add add_incr cont_on_err ******
4B 2005625C MEM_Maskd_Errs start_add end_add add_incr cont_on_err ******
4A 20056436 MEM_Correction start_add end_add add_incr cont_on_err ******
49 20056649 MEM_FDM_Logic *** cont_on_err ******
48 20056C18 MEM_Addr_shrts start_add end_add * cont_on_err pat2 pat3 ****
47 2005726F MEM_Refresh start end incr cont_on_err time_seconds *****
40 200573FA MEM_Count_Errs First_board Last_board Soft_errs_allowed *******
44 20057700 Cache_memory addr_incr *********
9D 20057A4C Utilities Expnd_err_msg get_mode init_LEDs clr_ps_cnt
9C 20057B50 List CPU regs *
9F 20058365 Create script ******
>>>SHOW MEMORY /FULL
Memory 0: 00000000 to 003FFFFF, 4MB, 0 bad pages
Memory 1: 00400000 to 00BFFFFF, 8MB, 0 bad pages

Total of 12MB, 0 bad pages, 102 reserved pages

Memory Bitmap
-00BF3400 to 00BF3FFF, 6 pages

Console Scratch Area
-00BF4000 to 00BF7FFF, 32 pages

Qbus Map
-00BF8000 to 00BFFFFF, 64 pages

Scan of Bad Pages

Foto's:

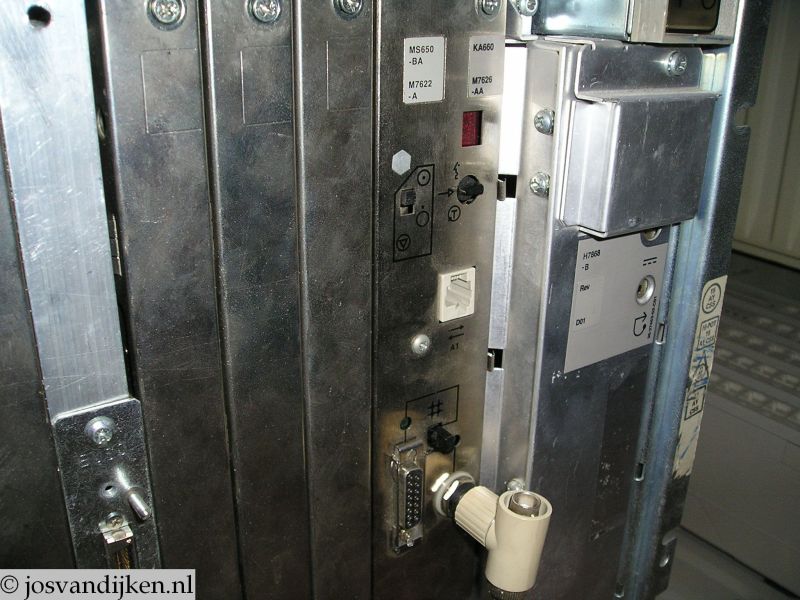

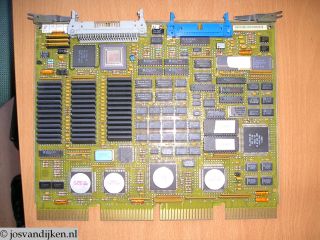

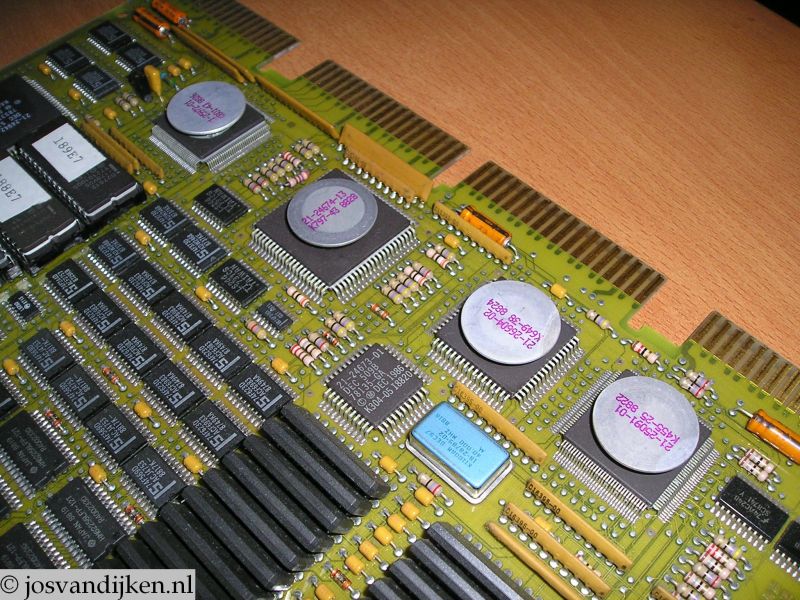

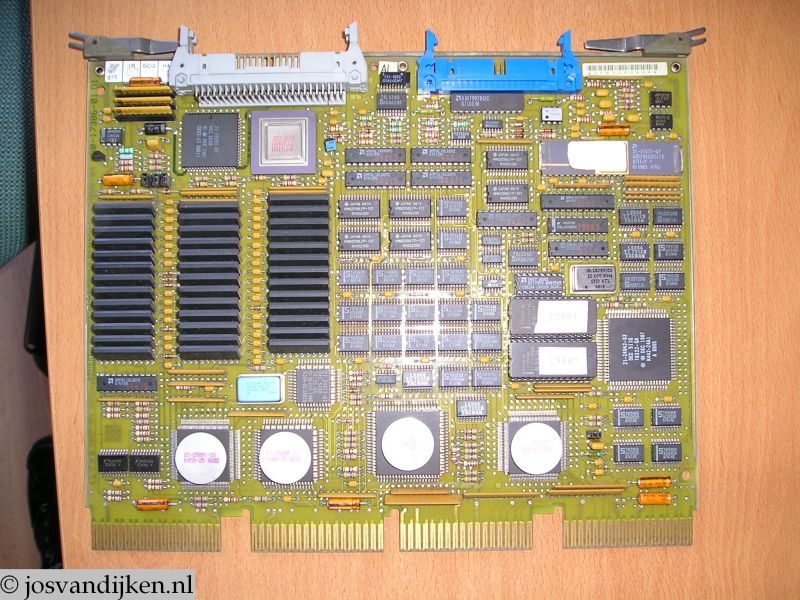

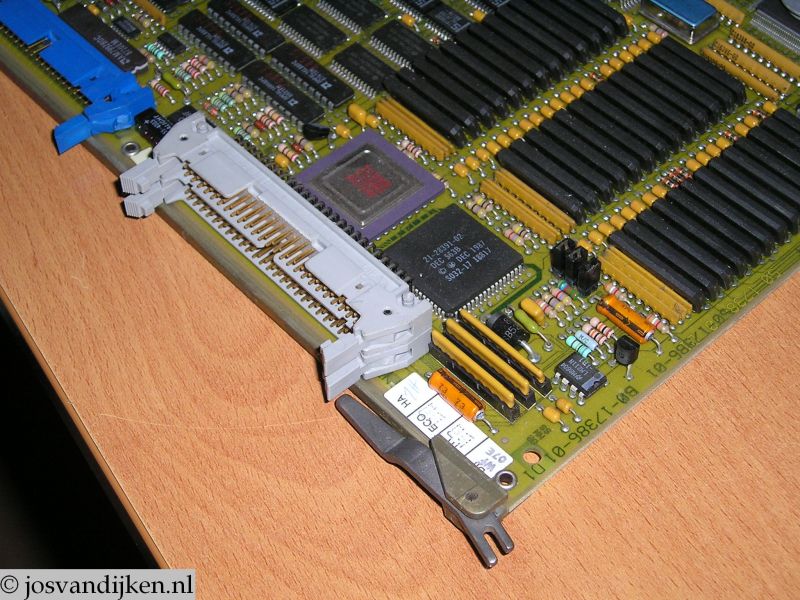

KA640-A CPU
KA640-A CPU

KA640-A CPU
KA640-A CPU

KA640-A CPU
KA640-A CPU

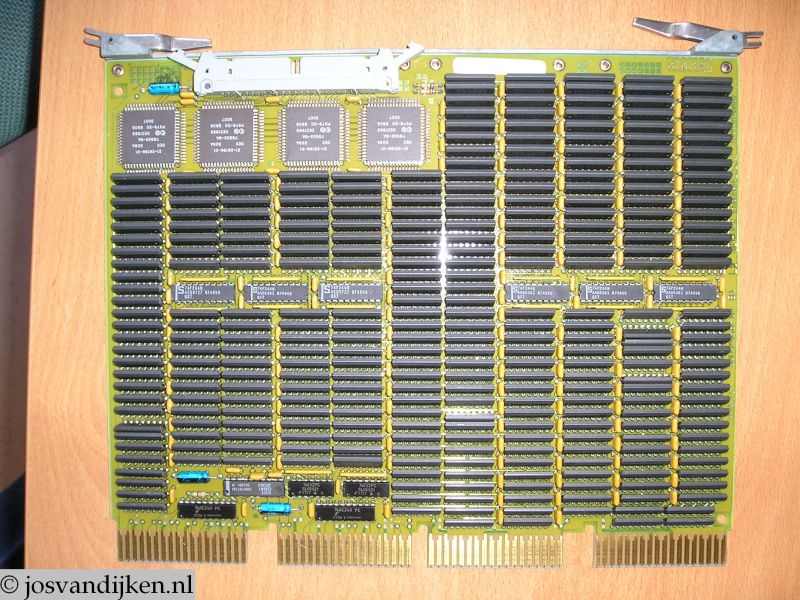

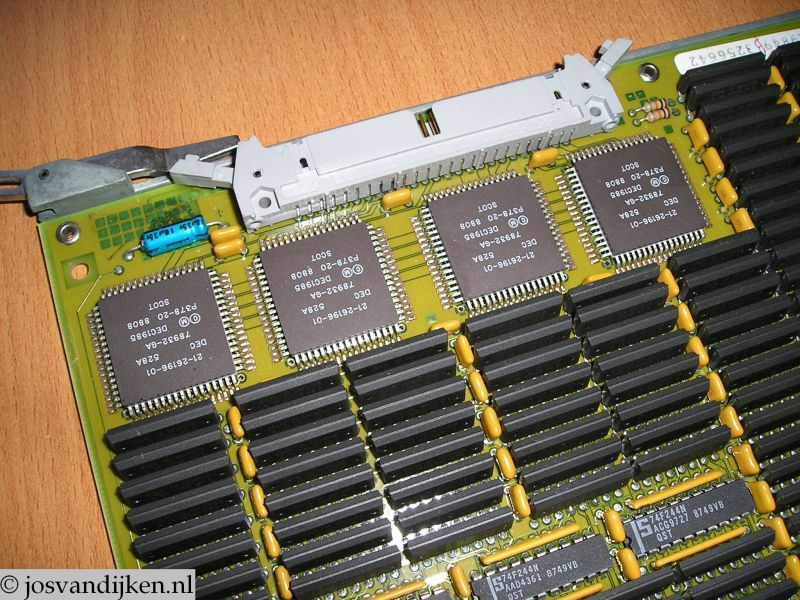

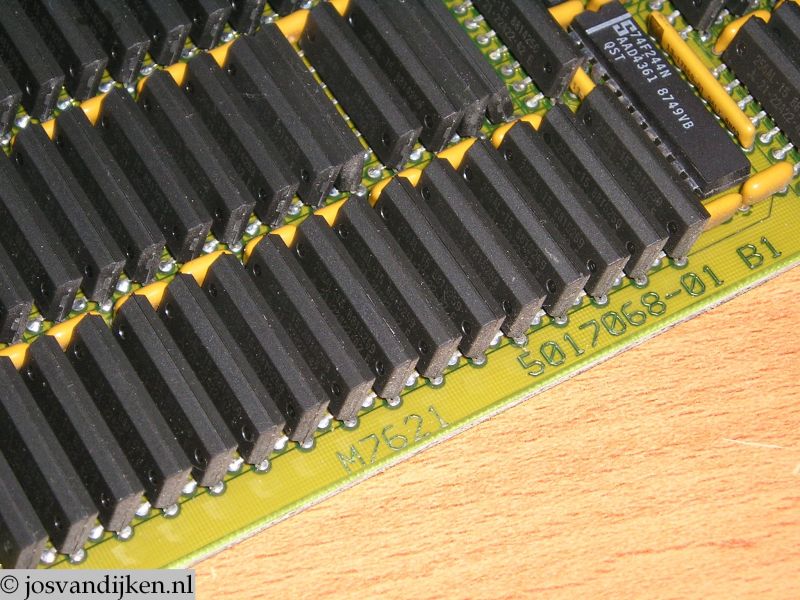

M7621-AA 8MB RAM
M7621-AA 8MB RAM

M7621-AA 8MB RAM
M7621-AA 8MB RAM

M7621-AA 8MB RAM
M7621-AA 8MB RAM
