Arbor EmCORE-v611

Specificaties:

  • System:

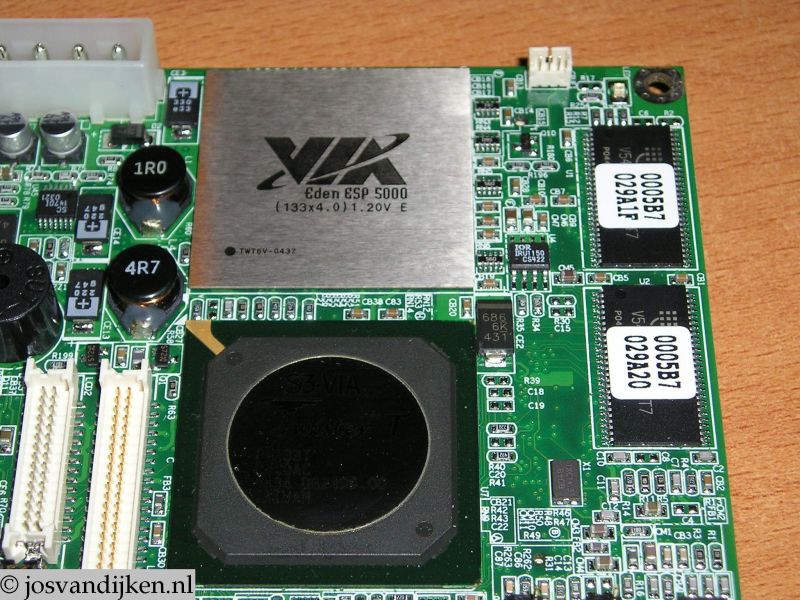

    • CPU: VIA Low Power Eden 533MHz. CPU FSB133MHz
    • Cache: 2nd level 64KByte
    • Memory: 128MB SDRAM onboard and 1 x 144Pin SO-DIMM up to 512MB SDRAM, total 640MB SDRAM
    • Chipset: VIA Twister-T VT8606T + VIA VT82686B
    • BIOS: Phoenix-AWARD PnP Flash BIOS
    • ATA/IDE: 1 x Ultra DMA 33, support 2 IDE drives
    • Flash Disk: 1 x Type II Compact Flash Disk Socket
    • Watchdog Timer: 127-level Reset
  • I/O:
    • Serial port: 1 x RS-232 port (COM1). 1 x RS-232/422/485 port (COM2)
    • Parallel port: SPP/EPP/ECP mode
    • Floppy: Support 2 Floppy disk drives
    • IrDA: 1 x SIR IrDA 1.1 compliant
    • USB: 4 x USB 1.1 compliant
    • KB/MS: 1 x PS2 K/B and Mouse
    • Expansion Bus: 1 x 16 bit ISA-based PC/104 interface
    • Digital I/O: 8 bit Digital Input/Output
  • Ethernet:
    • Chipset: 2 x Realtek 8100BL 10/100base-T. Built-in Boot ROM in Flash BIOS, support Boot from LAN
  • Audio
    • Codec/Interface VIA VT1612A AC97 Codec, support Mic-in / Line-in / Line-out
  • Display:
    • Graphics Chipset: VIA Twister-T S3 Savage4 Engine up to 32MByte UMA Video RAM. CRT support up to 1920 x 1440, LCD support 18 bit LVDS up to 1280 x 1024, LCD support 18/24/36 bit TTL up to 1280 x 1024
  • Mechanical & Environmental:
    • Power Consumption: 5V/3.4A (Max.)
    • Operating Temp.: 0 ~ 60°C (32 ~ 140°F)
    • Operating Humidity: 0 ~ 90% (non-condensing)
    • Dimension (L x W): 145 x 102mm (5.7" x 4")
  • Besturingssysteem:
    • Debian Linux

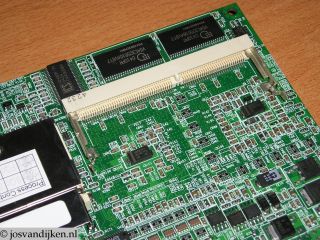

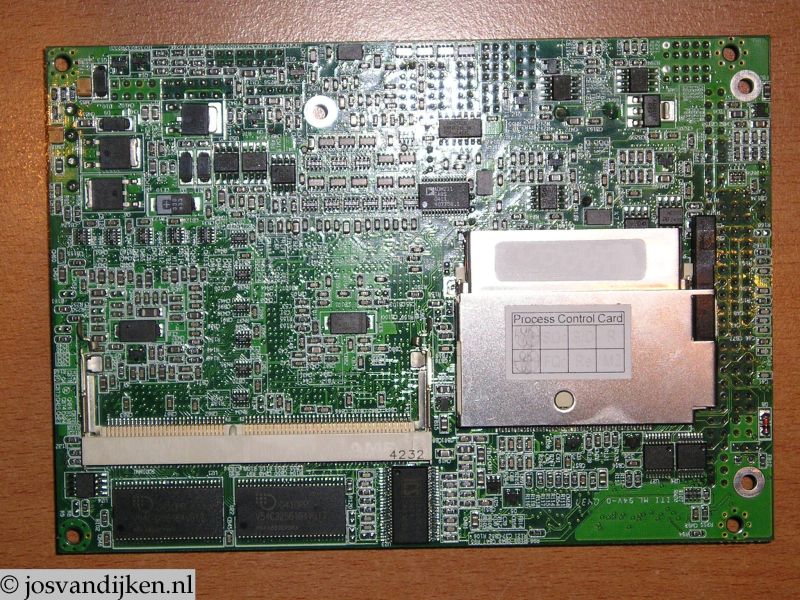

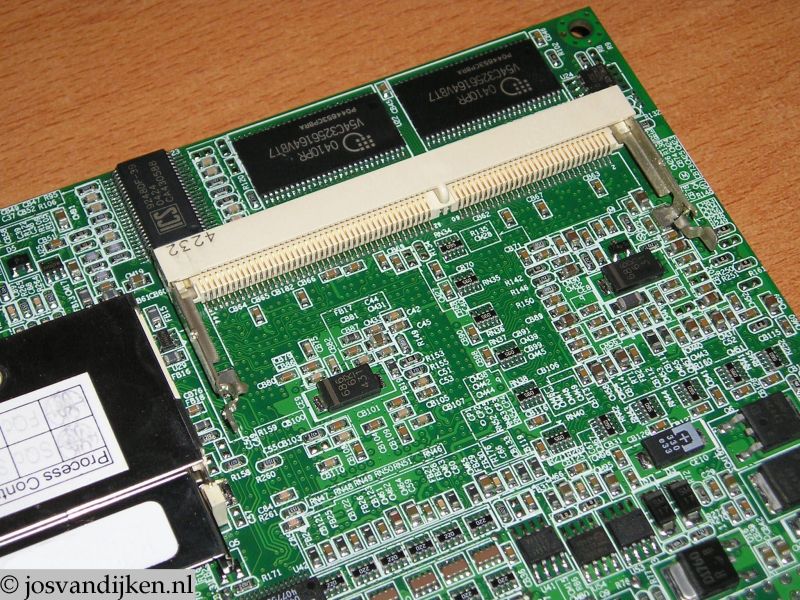

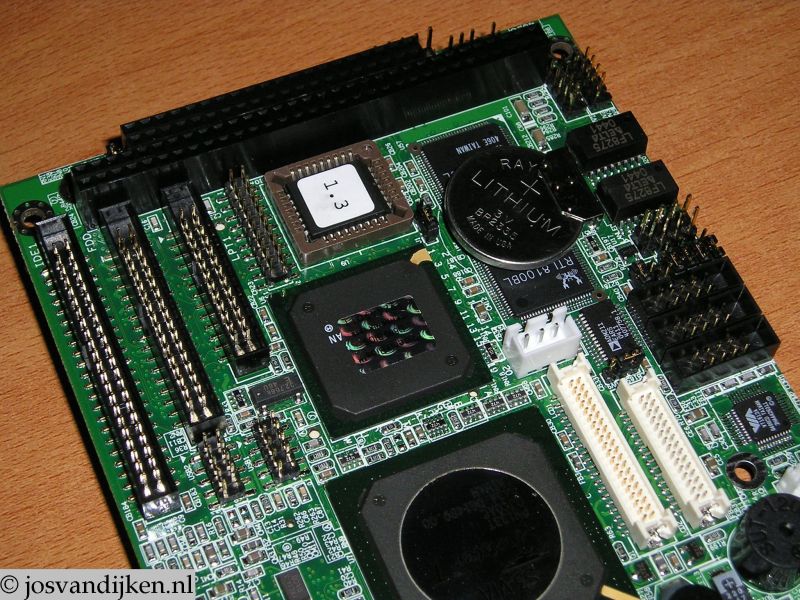

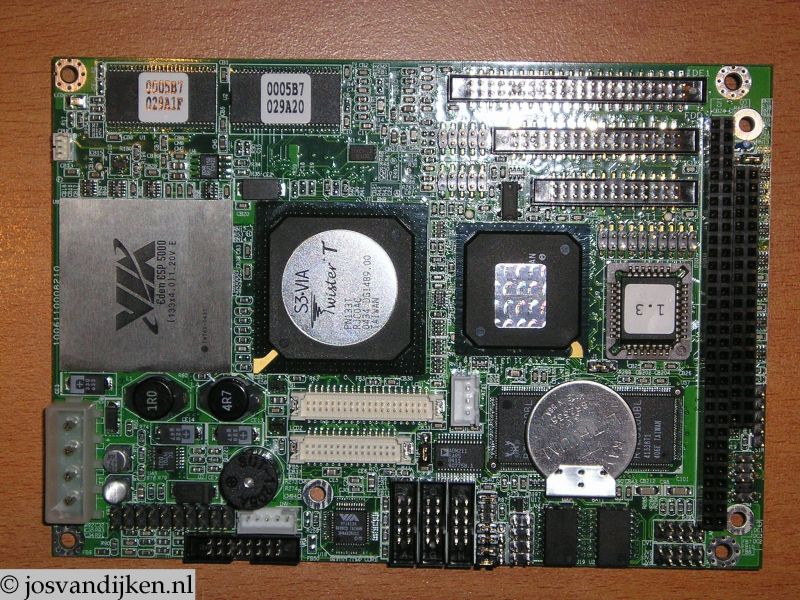

Foto's:

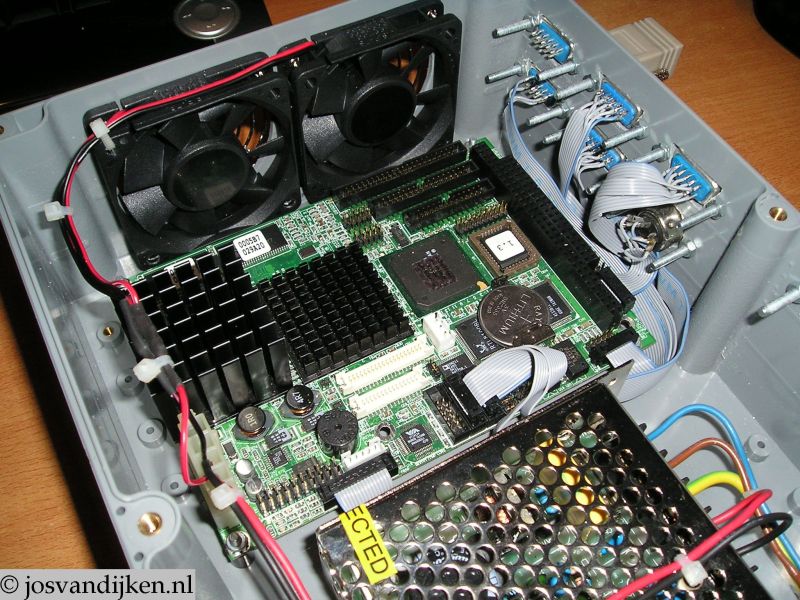

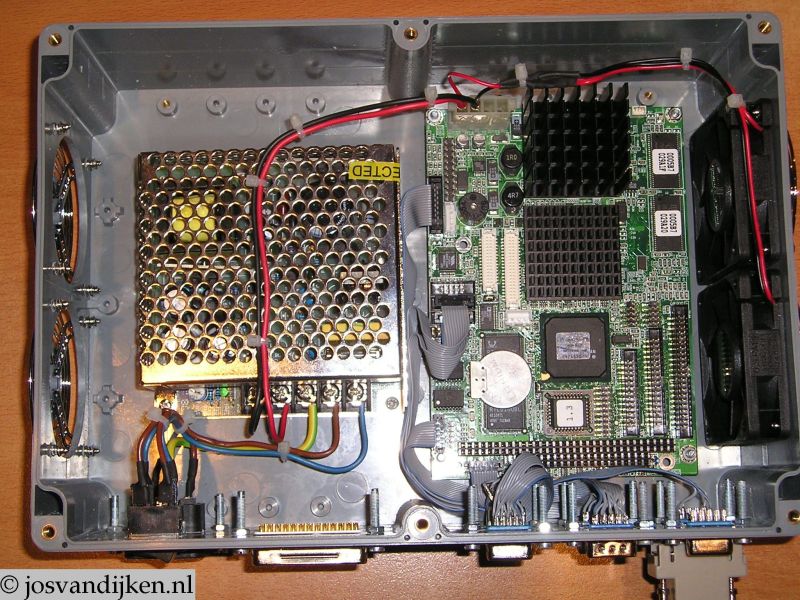

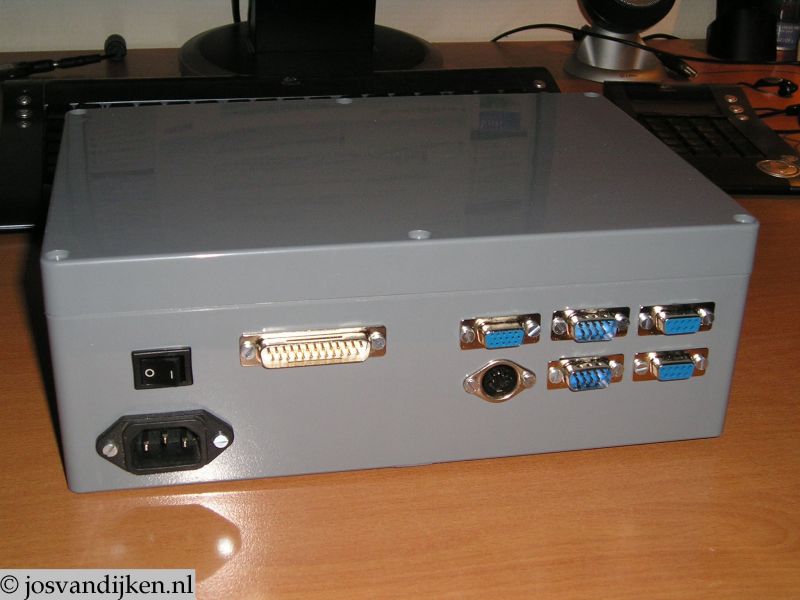

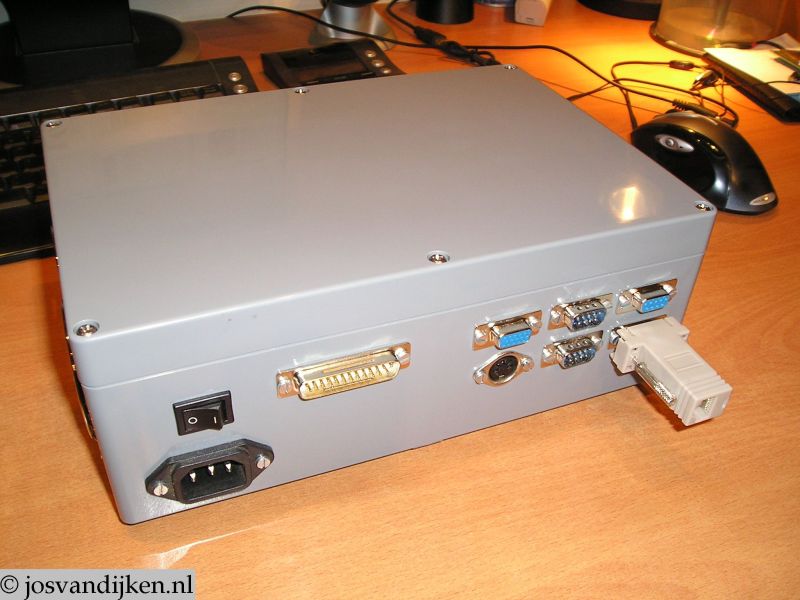

Momenteel is het moederbord ingebouwd in een kastje samen met een voeding en wat koeling.

Downloads:



Reacties:
Er zijn nog geen reacties op deze pagina.
