Quad 510

Specificaties:

  • Frequency Response:
    • Ref 1kHz -0,5dB at 20Hz and 20kHz
  • Power Response:
    • Ref 1kHz -3dB at 25Hz and 30kHz
    • 0dB at 40Hz and 20kHz
  • Power Output:
    • Power v distortion for various frequencies with continues sine wave into minimum recommended load
    • 40Hz any level up to 135 watts < 0,03% Dtot
    • 1kHz any level up to 135 watts < 0,01% Dtot
    • 20kHz any level up to 135 watts < 0,1% Dtot
  • Load Impedance:

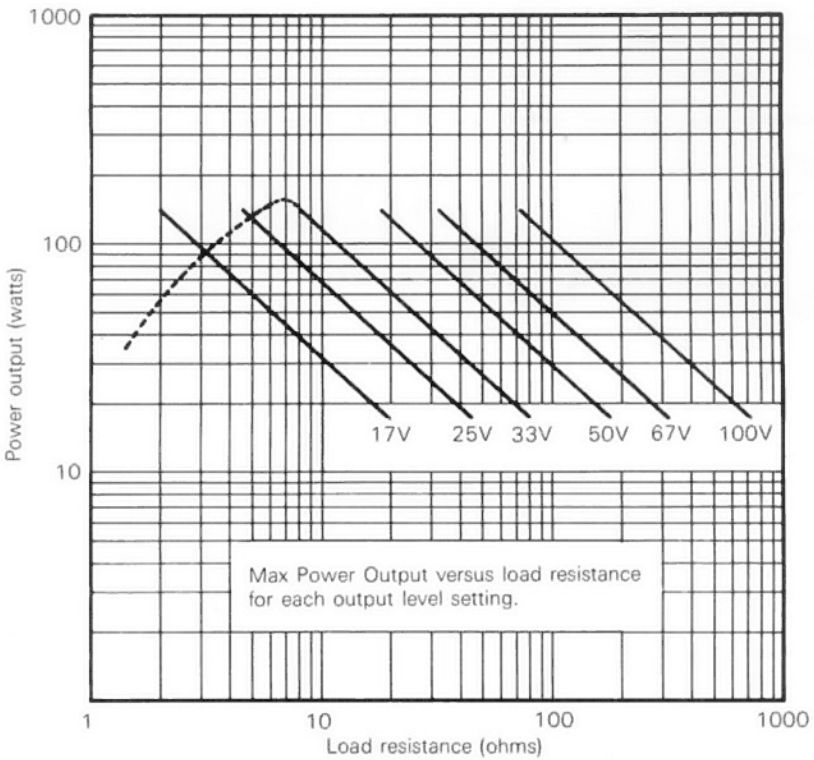

    • Minimum load impedance for various output levels. Note the output configuration cards are labelled with voltage levels.
    • 2Ω 17Vrms / 18Ω 50Vrms
    • 4,5Ω 25Vrms / 32Ω 67Vrms
    • 8Ω 33Vrms / 72Ω 100Vrms
  • Output Regulation:
    • Better than 10% for load changes from open circuit to minimum recommended value.
  • Signal Input Level:
    • 0,5Vrms at maximum gain for 135 watts into minimum load.
  • Input Impedance:
    • 20kΩ in parallel with 50H.
  • Hum and Noise:
    • -115dB unweighted ref. full power (15,7kHz measurement bandwidth)
  • Stability:
    • Unconditional.
  • A.C. Input:
    • 110-120V, 220-240V 50-60Hz 20-40 watts
  • Protection:
    • The amplifier is fully protected against short circuit or input overload
  • Weight:
    • 13kg
  • Dimensions:
    • Width 482,6 mm (19"), Height (2U) 88mm (3½"), Depth 320mm (12½")
  • Status: Defect

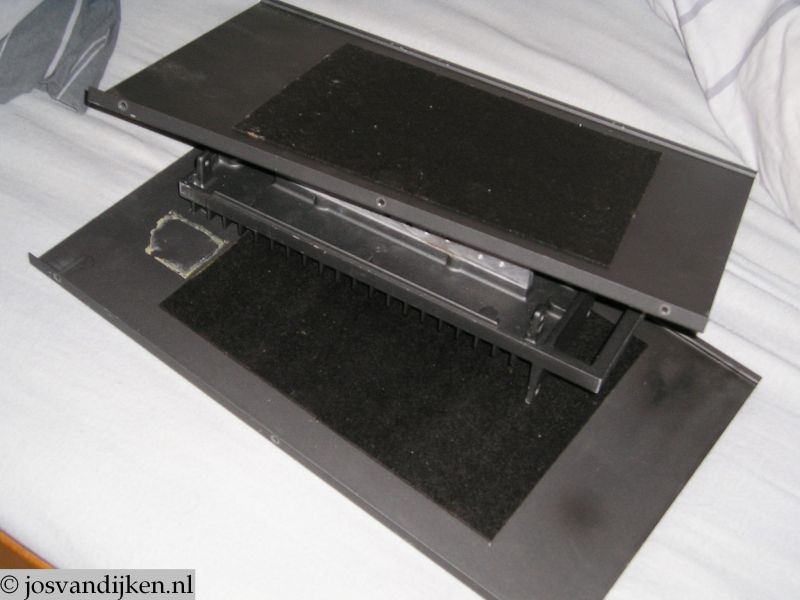

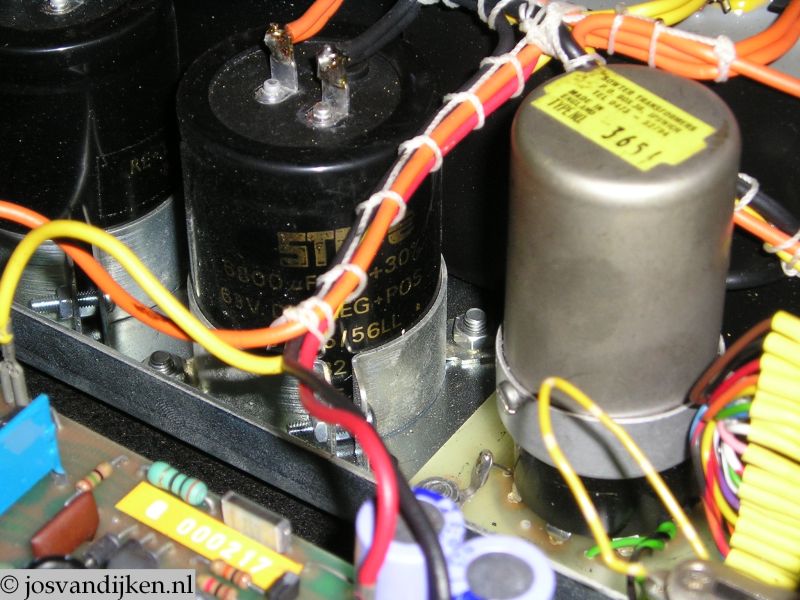

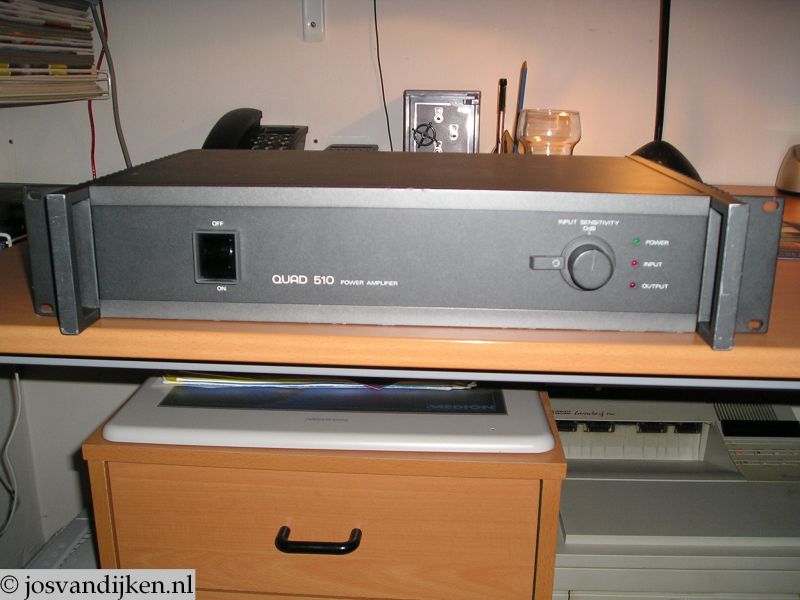

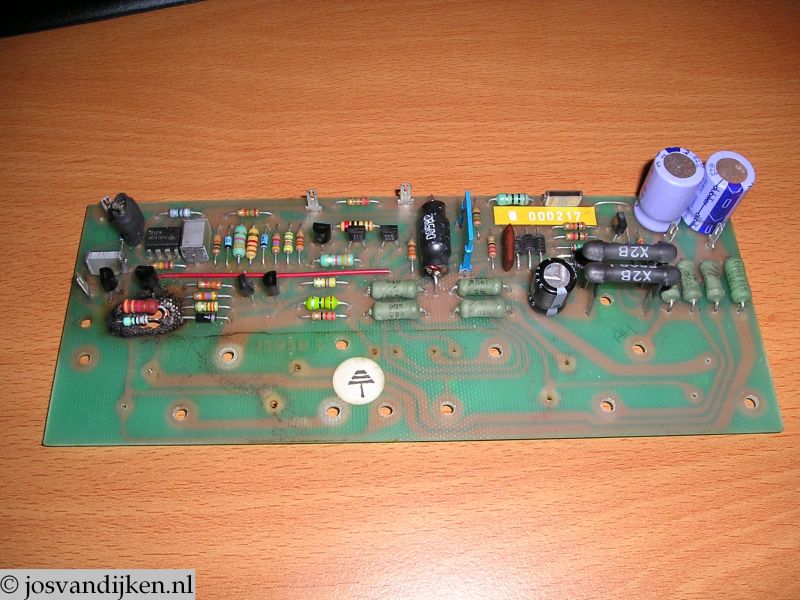

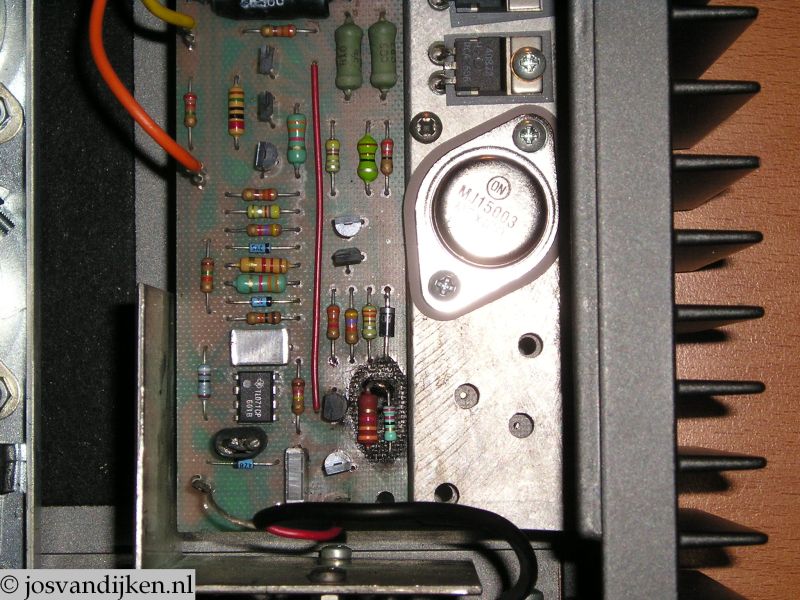

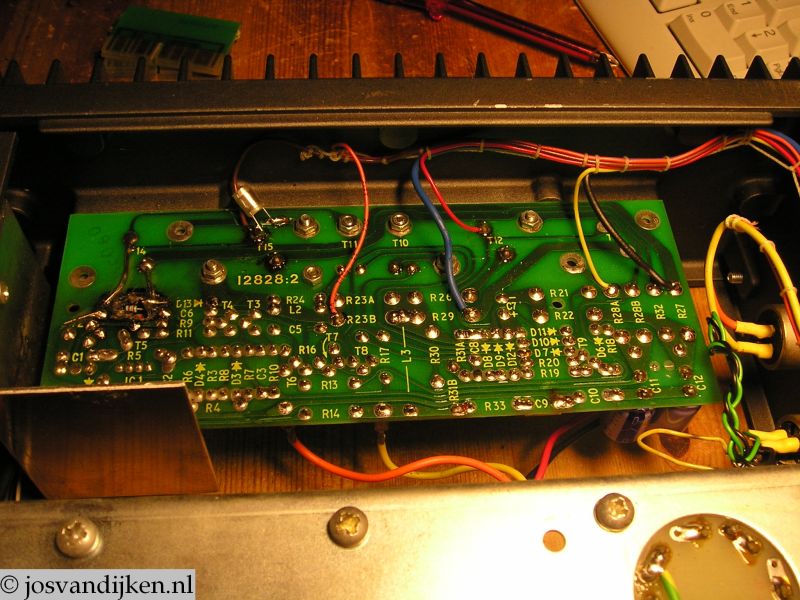

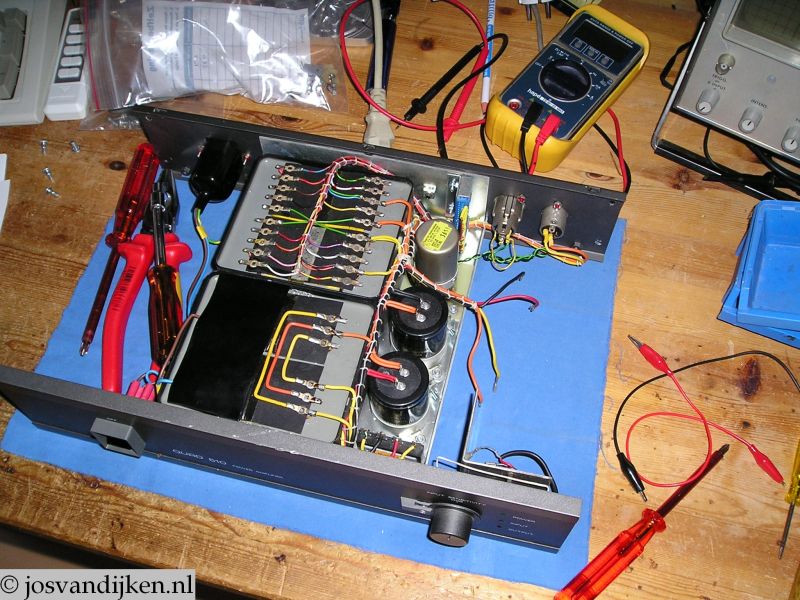

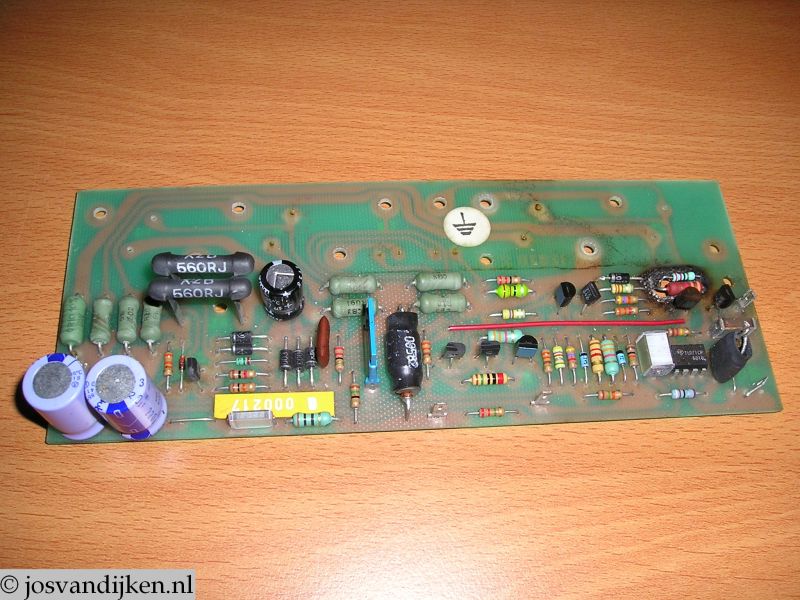

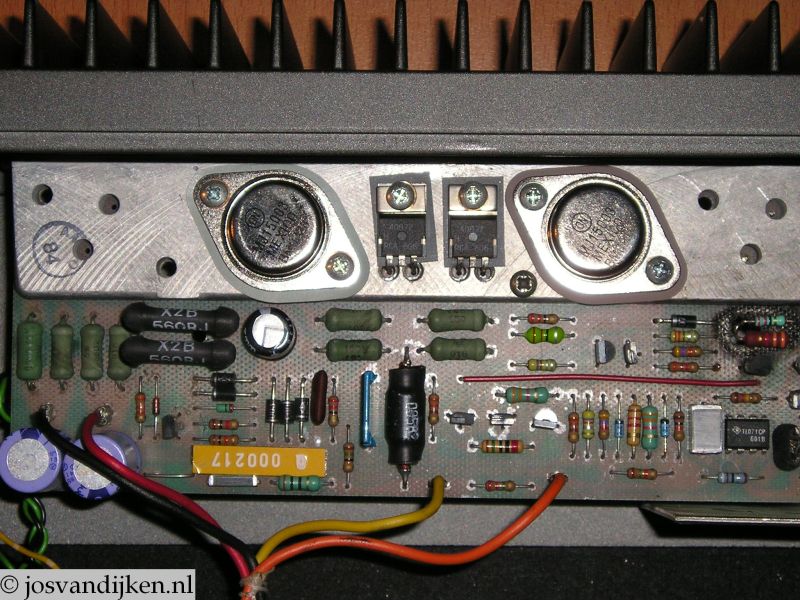

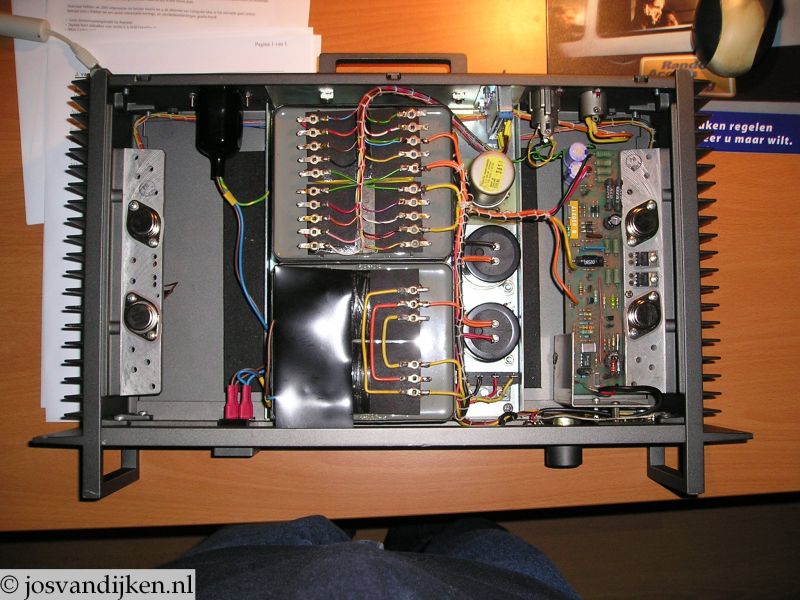

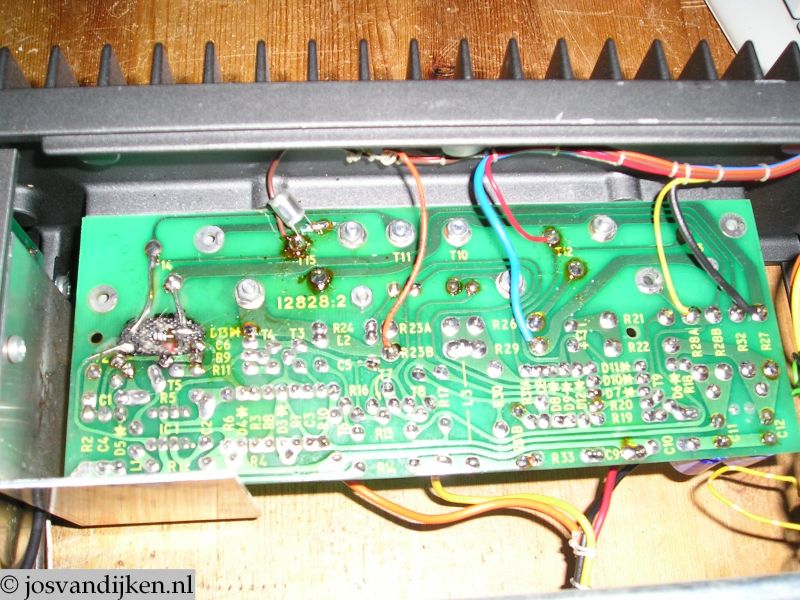

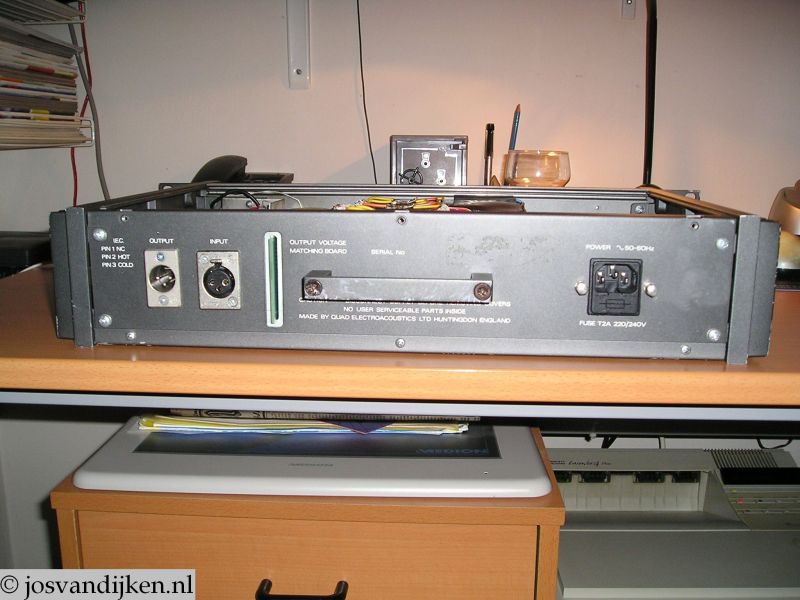

Foto's:

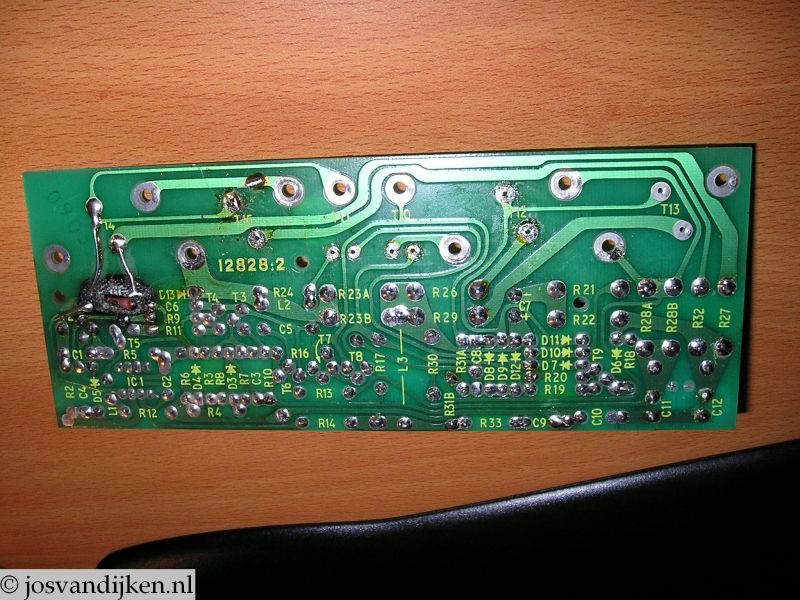

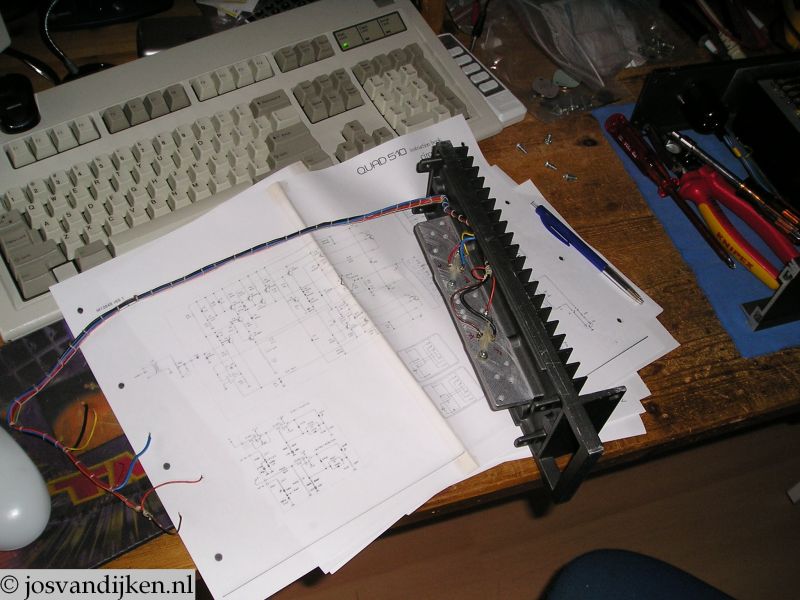

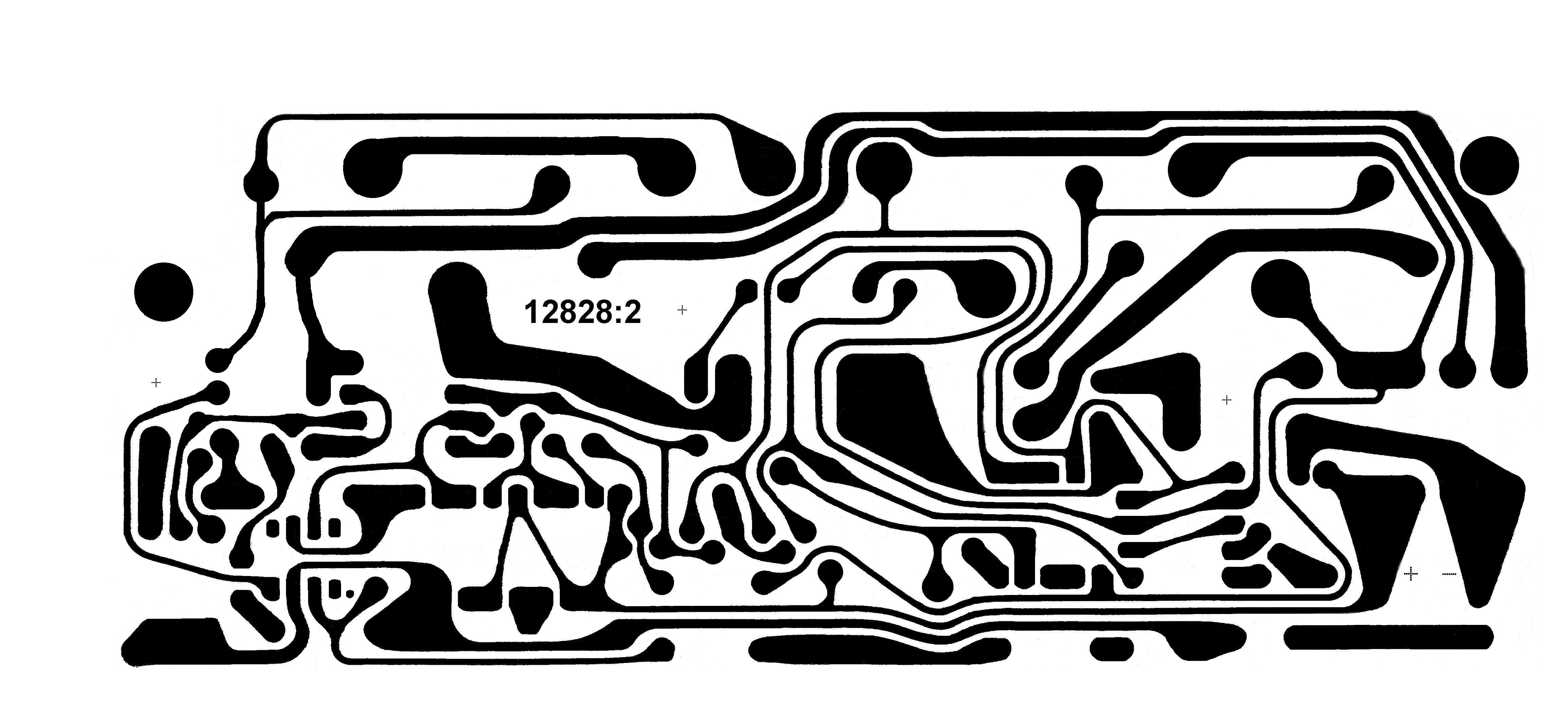

Het gereconstrueerde printontwerp
